Generac 26kW Generator New Features
The New Generac 26kW Generator supplies an entire home or business during an outage plus all the large appliances. Innovative new features set this Generac Guardian apart from the competition.
The Smart Grid Ready Generator becomes a virtual power plant during peak demand to reduce strain on the electrical grid and offset monthly energy costs.
Save up to $8000 on Purchase and Installation costs over comparable liquid-cooled generators.
Enjoy 28% More Starting Power than competing products while taking up 68% less space than liquid-cooled generators with similar output capacity.
Installation connects the 26kW Generac standby generator to your home’s main circuit breaker panel through the automatic transfer switch. Your home’s existing natural gas or LP Propane connections provide fuel for the Generac G-Force 1000 Series Engine.
- Natural Gas or LP Propane
- 24/7 Monitoring of Utilty Supply
- Automatic Start and Run during Power Outages
- Runs until utility power is restored then shuts down automatically.
*ATS Sold Separately
26kW Generac Guardian Standby Generator
Automatic Transfer Switch (ATS not included)* required for installation. With a Generac ATS, the 7291 generator uses built-in intelligent load management for up to four air conditioners and can manage up to eight additional 240-Volt loads with Smart Management Modules. The Generac 7290 is ideal for replacement installations using an existing compatible transfer switch.
*Automatic Transfer Switch Not Included

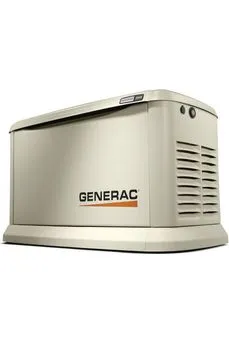

Generac 26kW Generator
The New 26kW Generac Guardian Generator is the largest and most powerful air-cooled generator on the market. It fits the same small footprint as other Guardian models and is certified for 18-inch to home installation. Complies with the 2017 NEC shutdown switch requirement.
Required Battery not included: 12V, Group 26R 550 CCA minimum or Group 35 AGM 650 CCA minimum.
*All Specifications Subject to Change.
**U.S EPA Certification Pending. Shipment dependent on certification.
Product Specifications
Model
Model Number
7290Manufacturer
Generac Power SystemsMade In USA
YesRated Watts
26kW Propane / 22.5kW Natural GasSurge Watts
55.2 kVARated Amps
108 Amps Propane / 93.8 Amps Natural GasSurge Amps
230 Locked Rotor AmpsVoltage
120/240 Volts Single PhaseA/C Ton Rating
5-TonEnclosure
AluminumUL Listed
UL-2200Decibel Rating
57 dBA Quiet Test Mode / 67 dBA Full LoadType
Standby GeneratorSeries Name
Guardian SeriesTransfer Switch Model
ATS Not IncludedFeatures
Starting System
Automatic StartLow Oil Alert
Low Oil ShutdownMainline Breaker
110 AmpsBattery Requirement
12-Volt Group 26R 540 CCA / Group 35AGM 640 CCAMounting Pad
TBDWeight
518 lbsDimensions
48L X 25W X 29HWarranty Information
Consumer Warranty
Generac 5-Year Limited WarrantyCommercial Warranty
Generac 5-Year Limited WarrantyEngine
Engine Brand
Generac G-ForceEngine Size
999cc V-Twin OHVEngine RPM
3600 RPMCast Iron Sleeve
YesCooling System
Air CooledAlternator
Alternator Type
2-Pole Rotating FieldFrequency
60 HzAuto Voltage Regulation
YesFuel
Fuel Type
Natural Gas or LP PropaneFuel Gauge
NoNG Power Capacity
22.5kWLP Power Capacity
26kWNG Consumption @ Full Load
333 Cubic Feet per HourNG Consumption @ Half Load
188 Cubic Feet per HourLP Consumption @ Full Load
3.63 Gallons per HourLP Consumption @ Half Load
2.06 Gallons per Hour
