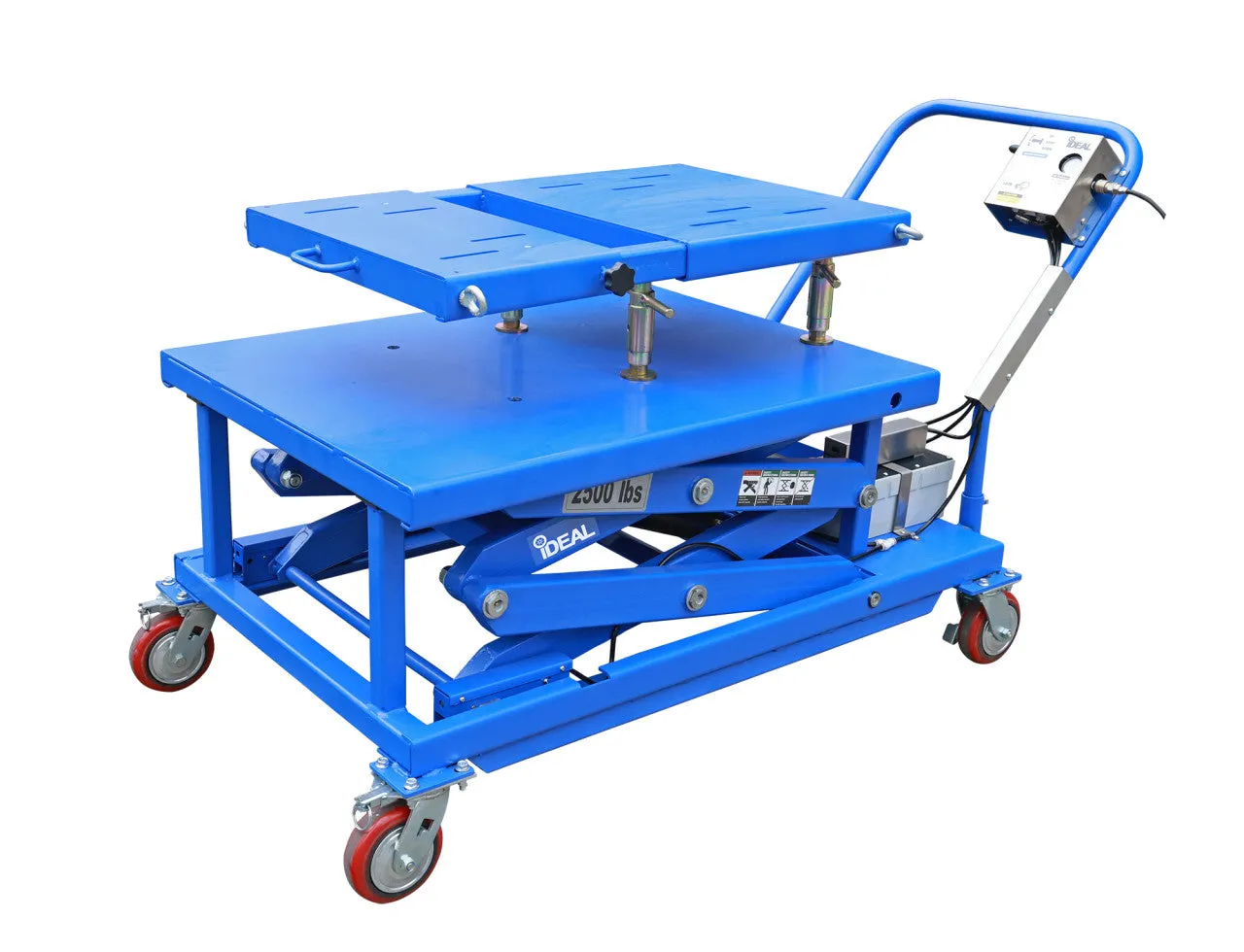

Tuxedo LT-PT2500AH-X iDeal Powertrain Lift Table
Features:
- Innovative, high quality portable scissor lift design
- Efficient & safe method to install or remove heavy vehicle powertrain components, i.e:
- transmissions, engines or axles
- Full operation air system hand controls for lifting, locking and lowering
- Integrated air gauge with water separator
- HD PT 'extendable & slotted' platform w/5.2" adjustment lengt
- HD jack screws for precision 'tilt & height' platform adjustments
- Double scissor HD design w/HQ hydraulic cylinder
- Integrated utility tool tray & sub-plaform storage area
- Durable 'directional & locking' poly swivel casters
- Includees 4 each tie-down ring eyelets & HD ratchet strap
- Durable powder coat finish
Specifications:
- Capacity | 2,500 lbs
- Overall Size | 71.3"L x 33.5"W
- EV Platform | 72" max, 35" min
- Hand Bar Height | 39.2"
- EV Platform Adj Size | 31.5" to 36.7" x 23.6"
- EV Platform Adj Tilt Angle ( /-) | 6° to 8°
- EV Platform Locking Heights | 49", 61", 68"
- Lifting/Lowering Rate | 72S/33S
- Power Supply (Compressed Air | 90 - 125 psi (6-9 bar)
- Ship Weight | 798 lbs
PLEASE NOTE, IMPORTANT INFORMATION:
- This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. If Residential Delivery or Liftgate Delivery is needed, please select one of the choices above BEFORE adding to the cart!
